Reproducing across laboratories

A screen at scale comes from more than one laboratory. This page uses JUMP-Target-2, the plate the JUMP consortium [Chandrasekaran et al., 2023] ran at every participating laboratory, so any difference between two copies of it is technical.

JUMP calls a participating laboratory a source, and this page uses that column throughout: Metadata_Source, with values from source_2 to source_13. In a CellProfiler export, Metadata_Site is a field of view inside a well, which this page does not use.

For Harmony, retrieval and iLISI disagree.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import scanpy as sc

import mantispy as mt

import plotly.io as pio

pio.renderers.default = "notebook_connected"

JUMP-Target-2

mt.ds.jump_target2() downloads one TARGET2 plate from each of the eleven sources that ran it, and joins the JUMP annotation onto them. The plate map is identical at every source, and source_9 runs it four times over on a 1536-well plate; only the laboratory differs.

jump = mt.ds.jump_target2()
{
    "shape": jump.shape,
    "sources": jump.obs["Metadata_Source"].value_counts().to_dict(),
    "perturbations": int(jump.obs["Metadata_Perturbation"].nunique()),
    "control wells": int(jump.obs["Metadata_Control"].sum()),
}

{'shape': (5374, 3616),
 'sources': {'source_9': 1536,
  'source_10': 384,
  'source_13': 384,
  'source_3': 384,
  'source_4': 384,
  'source_5': 384,
  'source_6': 384,
  'source_7': 384,
  'source_8': 384,
  'source_11': 383,
  'source_2': 383},
 'perturbations': 302,
 'control wells': 898}

counts = jump.obs["Metadata_Source"].value_counts().sort_values()
fig, ax = plt.subplots(figsize=(5, 4))
ax.barh(counts.index.astype(str), counts.to_numpy(), color="steelblue")
ax.set_xlabel("wells")
ax.set_title("Wells per source")
fig.tight_layout()
plt.show()

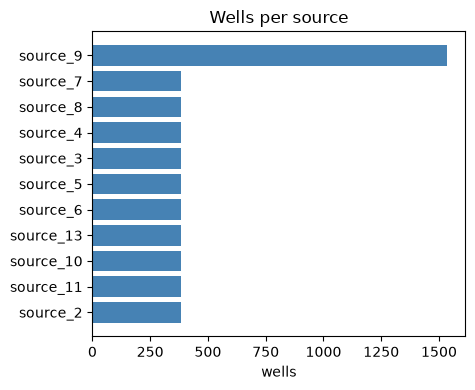

Wells contributed by each source. source_9 has 1536 (a 1536-well plate); the others have about 384 each.

The perturbation annotation comes from the JUMP metadata repository, joined by mt.io.read_jump; see Published profiles and JUMP.

The same pipeline

The recipe does not change for data from eleven laboratories.

mt.pp.normalize(jump, method="mad_robustize", by="Metadata_Plate", reference="negcon")
mt.pp.feature_select(jump, na_cutoff=0.0)
jump = mt.pp.subset_features(jump)

{
    "features kept": jump.n_vars,
    "control wells per source": jump.obs.groupby("Metadata_Source", observed=True)["Metadata_Control"].sum().to_dict(),
}

{'features kept': 603,
 'control wells per source': {'source_10': 64,
  'source_11': 64,
  'source_13': 64,
  'source_2': 65,
  'source_3': 64,
  'source_4': 64,
  'source_5': 64,
  'source_6': 65,
  'source_7': 64,
  'source_8': 64,
  'source_9': 256}}

controls = jump.obs.groupby("Metadata_Source", observed=True)["Metadata_Control"].sum().sort_values()
fig, ax = plt.subplots(figsize=(5, 4))
ax.barh(controls.index.astype(str), controls.to_numpy(), color="steelblue")
ax.axvline(jump.n_vars, color="indianred", ls="--", lw=1, label=f"{jump.n_vars} features")
ax.set_xlabel("control wells")
ax.set_title("Control wells per source")
ax.legend(fontsize=8)
fig.tight_layout()
plt.show()

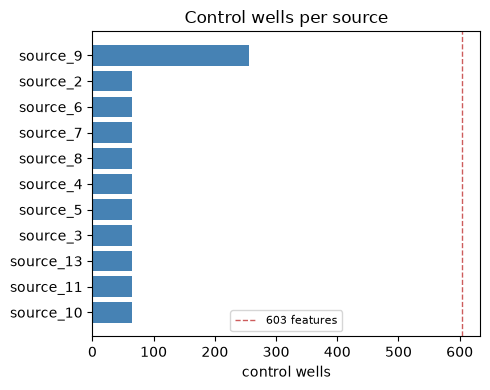

Control wells per source (bars) against the number of features kept (dashed line). Every source has fewer control wells than features.

The batch metrics

mt.metrics.evaluate_correction runs the batch metrics and says which direction is better for each.

sc.pp.pca(jump, n_comps=30)
mt.metrics.evaluate_correction(jump, label_key="Metadata_Perturbation", batch_key="Metadata_Source").round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.321	higher
1	silhouette_batch	X_pca	Metadata_Source	0.863	higher
2	ilisi	X_pca	Metadata_Source	2.765	higher
3	clisi	X_pca	Metadata_Perturbation	8.910	lower
4	pc_regression	X_pca	Metadata_Source	0.010	lower

mt.pl.batch_variance(jump, keys=["Metadata_Source", "Metadata_Perturbation"]);

Cross-source retrieval

Batch metrics ask whether the sites mix. A screen needs to know whether the same compound, run at different sites, produces the same profile. That is a retrieval task, with pos_sameby set to the perturbation and pos_diffby to the source.

The next cell computes the baseline, three corrections and an ICC feature filter.

def cross_source_map(adata, use_rep=None):
    """Mean average precision for retrieving a compound across sites."""
    treated = adata[~adata.obs["Metadata_Control"].to_numpy()].copy()
    mt.tl.map(
        treated,
        pos_sameby=["Metadata_Perturbation"],
        pos_diffby=["Metadata_Source"],
        neg_diffby=["Metadata_Perturbation"],
        use_rep=use_rep,
        null_size=500,
        seed=0,
    )
    table = treated.uns["mantispy"]["map"]
    return round(float(table["mean_average_precision"].mean()), 3), int(table["below_corrected_p"].sum())


n_treated = int(jump.obs.loc[~jump.obs["Metadata_Control"].to_numpy(), "Metadata_Perturbation"].nunique())
variants = {"per-plate normalize only": jump}

per_source = jump.copy()
mt.pp.sphere(per_source, method="ZCA-cor", reference="negcon", by="Metadata_Source")
variants["+ sphere per source"] = per_source

pooled = jump.copy()
mt.pp.sphere(pooled, method="ZCA-cor", reference="negcon")
variants["+ sphere pooled controls"] = pooled

regressed = jump.copy()
mt.pp.regress_out(regressed, keys=["Metadata_Source"], by=None)
variants["+ regress out source"] = regressed

reproducible = jump.copy()
mt.pp.feature_reproducibility(reproducible, groupby="Metadata_Perturbation", min_icc=0.2)
reproducible = reproducible[:, reproducible.var["icc_selected"].to_numpy()].copy()
variants["+ keep ICC > 0.2"] = reproducible

map_variants = pd.DataFrame(
    [
        {"pipeline": name, "features": adata.n_vars, "cross-source mAP": score, f"significant of {n_treated}": count}
        for name, adata in variants.items()
        for score, count in [cross_source_map(adata)]
    ]
)
map_variants

	pipeline	features	cross-source mAP	significant of 301
0	per-plate normalize only	603	0.021	79
1	+ sphere per source	603	0.021	117
2	+ sphere pooled controls	603	0.008	0
3	+ regress out source	603	0.004	0
4	+ keep ICC > 0.2	253	0.028	122

order = map_variants.set_index("pipeline")
sig_col = [c for c in order.columns if c.startswith("significant")][0]
fig, axes = plt.subplots(1, 2, figsize=(8, 4), sharey=True)
axes[0].barh(order.index, order["cross-source mAP"], color="steelblue")
axes[0].set_xlabel("cross-source mAP")
axes[1].barh(order.index, order[sig_col], color="seagreen")
axes[1].set_xlabel(sig_col)
fig.tight_layout()
plt.show()

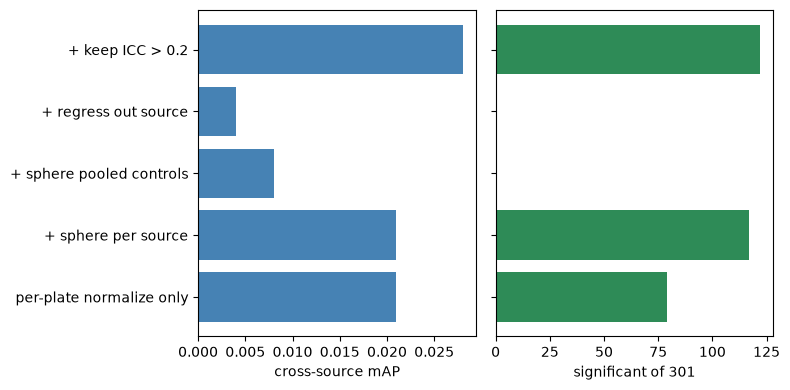

Left: cross-source mAP per pipeline. Right: compounds significant of 301. Sphering pooled controls and regressing out source give the lowest values; keeping ICC > 0.2 gives the highest.

# The batch metrics again, after sphering per source.
sphered = variants["+ sphere per source"].copy()
sc.pp.pca(sphered, n_comps=30)
mt.metrics.evaluate_correction(
    sphered, reps=("X_pca",), label_key="Metadata_Perturbation", batch_key="Metadata_Source"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.387	higher
1	silhouette_batch	X_pca	Metadata_Source	0.895	higher
2	ilisi	X_pca	Metadata_Source	5.181	higher
3	clisi	X_pca	Metadata_Perturbation	4.753	lower
4	pc_regression	X_pca	Metadata_Source	0.013	lower

Compare that table with the metrics above.

Sphering per source improves every batch metric except the variance explained by source, and here retrieval agrees: the mAP holds, and 117 compounds are recovered above chance instead of 79. Sphering on the pooled controls and regressing out the source recover none. Keeping the features whose replicates agree, which is not a batch correction, recovers the most.

Judge a correction by the retrieval the screen needs. The mixing metrics describe the batches, not whether the biology survived.

With one plate per site, there are 64 or 65 control wells per site (256 at source_9) against 603 features, so every covariance-based correction here is underdetermined. With twenty plates per site the result could differ.

What the consortium’s recipe does

JUMP has three recipes, and the perturbation type decides which one applies. jump-profiling-recipe names them in its configs. For compounds, which TARGET-2 contains, compound.json specifies

profiles_var_mad_int_featselect_harmony

that is, variance-based feature selection, MAD normalization against the negative controls, the rank inverse normal transform, feature selection and Harmony. The ORF and CRISPR branches use a different pipeline, profiles_wellpos_cc_var_mad_outlier_featselect_sphering_harmony, which adds well position correction, cell count regression, outlier removal and sphering.

Sphering is not in the compound pipeline. The two steps of the compound pipeline that the comparison above does not include are covered below, and both behave differently from the corrections in that table.

pp.rank_int is the rank inverse normal transform. Each feature’s values are replaced by their normal scores within a plate, so only the ordering of the wells is kept and the scale is discarded. Every feature ends up standard normal by construction, which is a strong assumption about your data, so check what it costs.

inted = jump.copy()
mt.pp.rank_int(inted, by="Metadata_Plate")

# The reference implementation ranks each feature over the whole screen; ranking within a
# plate additionally removes any plate-level difference in the shape of the distribution.
globally = jump.copy()
mt.pp.rank_int(globally)

inted_icc = inted.copy()
mt.pp.feature_reproducibility(inted_icc, groupby="Metadata_Perturbation", min_icc=0.2)
inted_icc = inted_icc[:, inted_icc.var["icc_selected"].to_numpy()].copy()

rankint_variants = pd.DataFrame(
    [
        {"pipeline": name, "features": adata.n_vars, "cross-source mAP": score, f"significant of {n_treated}": count}
        for name, adata in [
            ("per-plate normalize only", jump),
            ("+ rank INT, ranked globally", globally),
            ("+ rank INT, ranked per plate", inted),
            ("+ rank INT per plate, then ICC > 0.2", inted_icc),
        ]
        for score, count in [cross_source_map(adata)]
    ]
)
rankint_variants

	pipeline	features	cross-source mAP	significant of 301
0	per-plate normalize only	603	0.021	79
1	+ rank INT, ranked globally	603	0.023	113
2	+ rank INT, ranked per plate	603	0.033	126
3	+ rank INT per plate, then ICC > 0.2	61	0.034	150

order = rankint_variants.set_index("pipeline")
sig_col = [c for c in order.columns if c.startswith("significant")][0]
fig, axes = plt.subplots(1, 2, figsize=(8, 4), sharey=True)
axes[0].barh(order.index, order["cross-source mAP"], color="steelblue")
axes[0].set_xlabel("cross-source mAP")
axes[1].barh(order.index, order[sig_col], color="seagreen")
axes[1].set_xlabel(sig_col)
fig.tight_layout()
plt.show()

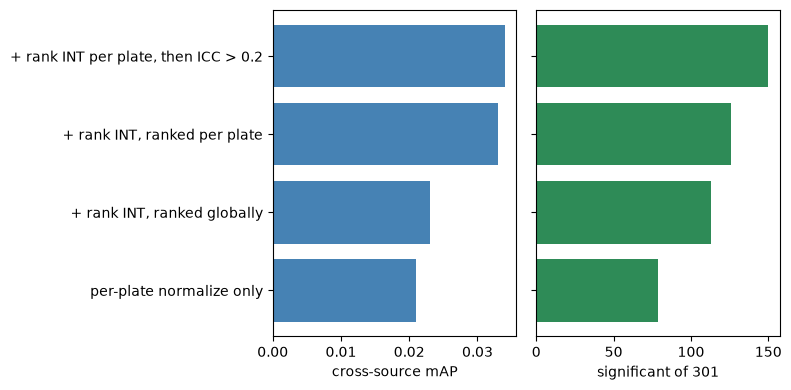

Left: cross-source mAP per ranking choice. Right: compounds significant of 301. Ranking per plate is higher than ranking globally or normalize-only, and adding the ICC filter is higher still.

Ranking per plate helps more than any correction above, and the ICC filter adds to it on only 61 features. Ranking globally does not.

Where you rank matters. The reference implementation ranks each feature over the whole screen, which is the by=None default. Ranking within each plate works markedly better here, because it also removes plate-to-plate differences in the shape of a feature’s distribution, which with one plate per site are the differences between sites.

The transform discards magnitude, and distance from the controls depends on magnitude, so check the effect on activity as well:

def activity(adata):
    """Phenotypic activity: can each compound be told from the negative controls?"""
    scratch = adata.copy()
    mt.tl.map(scratch, mode="activity", null_size=500, seed=0)
    table = scratch.uns["mantispy"]["map"]
    return round(float(table["mean_average_precision"].mean()), 3), int(table["below_corrected_p"].sum())


activity_compare = {"per-plate normalize only": activity(jump), "+ rank INT": activity(inted)}
activity_compare

{'per-plate normalize only': (0.249, 110), '+ rank INT': (0.289, 117)}

labels = list(activity_compare)
maps = [activity_compare[k][0] for k in labels]
fig, ax = plt.subplots(figsize=(5, 4))
bars = ax.bar(labels, maps, color=["grey", "steelblue"])
ax.bar_label(bars, padding=2)
ax.set_ylabel("activity mAP")
ax.set_title("Phenotypic activity")
fig.tight_layout()
plt.show()

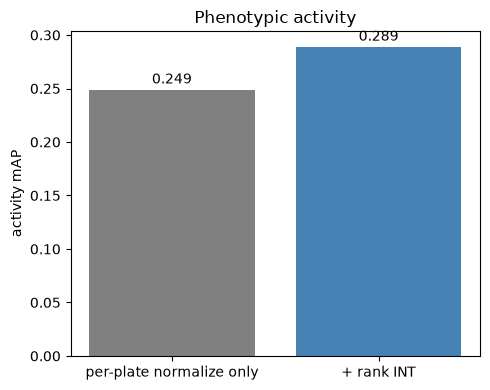

Phenotypic activity mAP before and after the rank INT transform. It is slightly higher after the transform.

Here it costs nothing, and activity rises too. That need not generalize: this is one plate per source and 603 features. The outcome depends on the screen, so measure both before adopting it.

Harmony, and a metric that disagrees with retrieval

pp.harmony ranked in the top three in every scenario of the batch-correction benchmark [Arevalo et al., 2024], as did Seurat RPCA, and is the last step of the recipe. It works on an embedding rather than on features (it alternates soft clustering and per-cluster linear correction), so it returns a corrected obsm, not a corrected X. It needs the optional extra, pip install 'mantispy[harmony]'. Its result moves with the seed and the row order; Learned embeddings against CellProfiler measures how much the seed moves it.

harmonised = jump.copy()  # carries the X_pca from above
mt.pp.harmony(harmonised, batch_key="Metadata_Source", use_rep="X_pca")

mt.metrics.evaluate_correction(
    harmonised, reps=("X_pca", "X_harmony"), label_key="Metadata_Perturbation", batch_key="Metadata_Source"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.321	higher
1	silhouette_batch	X_pca	Metadata_Source	0.863	higher
2	ilisi	X_pca	Metadata_Source	2.765	higher
3	clisi	X_pca	Metadata_Perturbation	8.910	lower
4	pc_regression	X_pca	Metadata_Source	0.010	lower
5	silhouette_label	X_harmony	Metadata_Perturbation	0.324	higher
6	silhouette_batch	X_harmony	Metadata_Source	0.890	higher
7	ilisi	X_harmony	Metadata_Source	1.218	higher
8	clisi	X_harmony	Metadata_Perturbation	8.956	lower
9	pc_regression	X_harmony	Metadata_Source	0.013	lower

def centroid_spread(embedding):
    """Mean distance of the site centroids from their mean."""
    centroids = pd.DataFrame(embedding).groupby(harmonised.obs["Metadata_Source"].to_numpy()).mean()
    return round(float(np.linalg.norm(centroids - centroids.mean(), axis=1).mean()), 1)


harmony_compare = {
    key: {
        "site centroid spread": centroid_spread(harmonised.obsm[key]),
        "cross-source mAP": cross_source_map(harmonised, use_rep=key),
    }
    for key in ("X_pca", "X_harmony")
}
harmony_compare

{'X_pca': {'site centroid spread': 418.0, 'cross-source mAP': (0.016, 44)},
 'X_harmony': {'site centroid spread': 382.0, 'cross-source mAP': (0.018, 51)}}

keys = list(harmony_compare)
spread = [harmony_compare[k]["site centroid spread"] for k in keys]
maps = [harmony_compare[k]["cross-source mAP"][0] for k in keys]
fig, axes = plt.subplots(1, 2, figsize=(8, 4))
b0 = axes[0].bar(keys, spread, color="steelblue")
axes[0].bar_label(b0, padding=2)
axes[0].set_title("Site centroid spread")
b1 = axes[1].bar(keys, maps, color="seagreen")
axes[1].bar_label(b1, padding=2)
axes[1].set_title("Cross-source mAP")
fig.tight_layout()
plt.show()

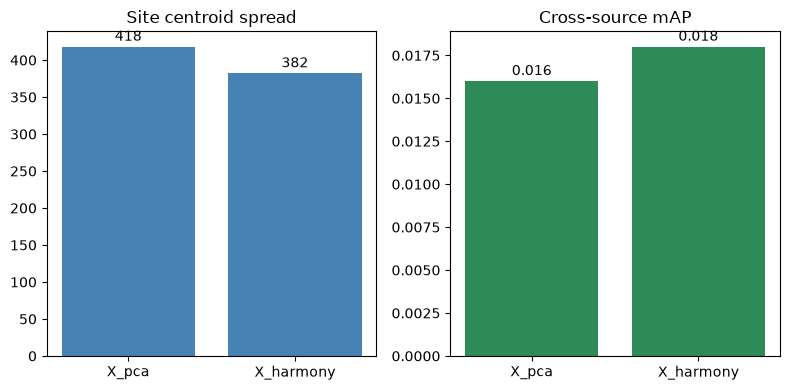

Left: mean spread of the site centroids for PCA and Harmony. Right: cross-source mAP for the same two. Harmony lowers the centroid spread and raises the mAP slightly.

Harmony pulls the site centroids 8% closer and raises cross-source retrieval slightly, yet iLISI falls from 2.765 to 1.221.

iLISI asks whether a well’s nearest neighbors come from several sites. Harmony aligns the sites globally without mixing local neighborhoods, so a well stays surrounded by wells from its own site while the site clouds move together. Both observations hold, and retrieval is the one that answers the screen’s question.

harmonypy can report convergence and return the embedding unchanged. pp.harmony compares its output with its input and warns when they are identical, so that uncorrected numbers do not pass unnoticed through the rest of the pipeline.

treated = jump[~jump.obs["Metadata_Control"].to_numpy()].copy()
mt.tl.map(
    treated,
    pos_sameby=["Metadata_Perturbation"],
    pos_diffby=["Metadata_Source"],
    neg_diffby=["Metadata_Perturbation"],
    null_size=500,
    seed=0,
)
sc.pp.pca(treated, n_comps=30)
mt.metrics.evaluate_correction(
    treated, label_key="Metadata_Perturbation", batch_key="Metadata_Source", map_key="map"
).round(3)

	metric	representation	key	value	better
0	silhouette_label	X_pca	Metadata_Perturbation	0.328	higher
1	silhouette_batch	X_pca	Metadata_Source	0.864	higher
2	ilisi	X_pca	Metadata_Source	2.657	higher
3	clisi	X_pca	Metadata_Perturbation	12.685	lower
4	pc_regression	X_pca	Metadata_Source	0.012	lower
5	mean_average_precision	X	Metadata_Perturbation	0.021	higher

The last table is evaluate_correction with map_key= set, so the retrieval number appears in the same table as the mixing metrics. Its representation reads X, the matrix tl.map scored, not the X_pca of the rows above it. It runs on the treated wells only, which is why cLISI reads 12.7 here against 8.9 in the first table on this page: dropping 898 DMSO wells with the same label makes every neighborhood more label-diverse. Compare rows within a table, not across tables built on different rows.

Which compounds reproduce across sites?

The results above are aggregates: one mAP for the screen, one LISI per representation. Follow-up work needs to know which compounds reproduced, which the page has not yet shown.

tl.transport answers that. It computes each perturbation’s effect as its profile minus the control centroid of its own setting, so a baseline offset does not count as disagreement, and measures how well those effect vectors agree across settings. by= takes a list from coarsest to finest level, and each pair of plates is assigned to the coarsest level at which the two differ, so every comparison belongs to exactly one level.

With one plate per laboratory, as so far, laboratory and plate effects are the same comparison and cannot be separated. The next cell loads twelve of the 141 plates jump_target2 pins: three sources, two batches each, two plates per batch.

This section uses only the per-plate mad_robustize normalization from earlier, without rank_int, Harmony or the other corrections evaluated above. Its numbers are an uncorrected baseline on a different set of plates and are not comparable with the eleven-plate mAP values earlier on this page.

hierarchy = mt.ds.jump_target2(
    plates=["JCPQC051", "JCPQC052", "JCPQC053", "JCPQC054"]
    + ["BR00121438", "BR00121439", "BR00126113", "BR00126114"]
    + ["110000294936", "110000296682", "110000296339", "110000296356"]
)
mt.pp.normalize(hierarchy, method="mad_robustize", by="Metadata_Plate", reference="negcon")
hierarchy = hierarchy[:, ~hierarchy.var["degenerate_scale"].to_numpy()].copy()
mt.pp.feature_select(hierarchy, na_cutoff=0.0)
hierarchy = mt.pp.subset_features(hierarchy)

mt.tl.transport(hierarchy, by=["Metadata_Source", "Metadata_Batch", "Metadata_Plate"])
by_level = hierarchy.uns["mantispy"]["transport"]
by_level.groupby("level", observed=True).agg(
    compounds=("group", "size"),
    agreement=("agreement", "median"),
    reproduce=("transports", "sum"),
).round(3).reindex(["Metadata_Plate", "Metadata_Batch", "Metadata_Source"])

	compounds	agreement	reproduce
level
Metadata_Plate	301	0.475	75
Metadata_Batch	301	0.365	75
Metadata_Source	301	0.134	61

levels = ["Metadata_Plate", "Metadata_Batch", "Metadata_Source"]
summary = (
    by_level.groupby("level", observed=True)
    .agg(
        agreement=("agreement", "median"),
        reproduce=("transports", "sum"),
    )
    .reindex(levels)
)
fig, axes = plt.subplots(1, 2, figsize=(8, 4), sharey=True)
axes[0].barh(levels, summary["agreement"], color="steelblue")
axes[0].set_xlabel("median agreement")
axes[1].barh(levels, summary["reproduce"], color="seagreen")
axes[1].set_xlabel("compounds reproducing")
fig.tight_layout()
plt.show()

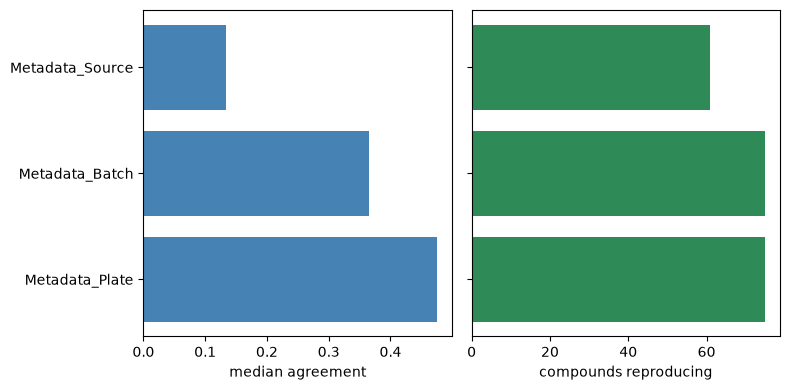

Left: median effect agreement at each level. Right: compounds reproducing at q < 0.05. Agreement falls from plate to batch to source.

Read the table row by row. A compound’s effect agrees at +0.475 between two plates of one batch, at +0.365 between batches of one laboratory, and at +0.134 between laboratories. Each step up the hierarchy lowers agreement, and the step between laboratories costs about twice as much as the step between batches.

A single aggregate cross-source mAP shows that the sites disagree, but not whether to fix plate handling or the protocol. The gap between levels does.

The reproduce column counts the compounds whose agreement beats the null at q < 0.05. The null uses every mismatched pair of compounds at that level instead of a sample. A sampled null would not give Benjamini-Hochberg enough resolution: its smallest possible p-value is one over the number of draws, so the count would reflect the number of draws rather than the screen.

pl.setting_agreement, in the figure below, reads the same effect vectors by plate instead of by compound: it shows which of the twelve plates agree with each other. Annotating by source draws a line at each laboratory boundary, so a laboratory that disagrees with itself appears as a broken block. Its cells are an activity-weighted mean over compounds, while the table’s per-level number is an unweighted median, so the heatmap reads higher than the table for the same pair of settings. Use it to see which settings differ from each other, not to compare absolute levels with the table.

mt.pl.setting_agreement(hierarchy, by="Metadata_Source");

Summary

• “Site” is ambiguous in this field. JUMP’s source is a laboratory; CellProfiler’s Metadata_Site is a field of view.

• Judge a correction by the question your screen asks. On this data iLISI and retrieval disagreed about Harmony, and the corrections that pooled the sites removed the biological signal.

• Reproducibility has levels. tl.transport separates them, and the gap between two levels is more actionable than either value alone. It is an observational measure: it supports “this effect did not reproduce at the other site”, but not “this effect would have been x at the other site”.

Next: Learned embeddings against CellProfiler, the same question asked of six feature sets.
