Published profiles and JUMP

An image-based profiling pipeline hands you a table: one row per well or per cell, a few thousand columns of CellProfiler measurements, and some metadata columns mixed in among them. read_profiles() turns one or many of those tables into an AnnData. It splits the measurements from the metadata and annotates what each feature name encodes. It handles what differs between real datasets: four spellings of the metadata prefix, missing-value sentinels, files with different columns, and metadata that only exists in the directory name.

import mantispy as mt

A dataset

mantispy.ds downloads whole accessions from the Cell Painting Gallery [Weisbart et al., 2024], so there is something real to read. This one is kinase inhibitors at a range of doses, eight plates of it.

adata = mt.ds.pki()
adata

AnnData object with n_obs × n_vars = 3072 × 5839
    obs: 'Metadata_plate_map_name', 'Metadata_broad_sample', 'Metadata_mg_per_ml', 'Metadata_mmoles_per_liter', 'Metadata_solvent', 'Metadata_Plate', 'Metadata_Well', 'Metadata_Site_Count', 'Metadata_Count_Cells', 'Metadata_Count_CellsIncludingEdges', 'Metadata_Count_Cytoplasm', 'Metadata_Count_Nuclei', 'Metadata_Count_NucleiIncludingEdges', 'Metadata_Object_Count', 'Metadata_Barcode', 'Metadata_Supplier', 'Metadata_Supplier_Catalog', 'Metadata_pert_type', 'Metadata_control_type', 'Metadata_CellCount', 'Metadata_SiteCount', 'Metadata_Control', 'Metadata_Compound', 'Metadata_Concentration', 'Metadata_MOA', 'Metadata_Perturbation'
    var: 'object', 'feature_group', 'feature', 'channel', 'scale', 'angle', 'gray_levels', 'radial_bin', 'params', 'is_feature'
    uns: 'mantispy'
    layers: None (.X)

Numeric columns that parse as CellProfiler features became the feature matrix, and everything else became obs. Every metadata prefix is normalized to Metadata_, and the loader adds the columns an analysis looks for: Metadata_Compound, Metadata_Concentration, Metadata_Control and Metadata_Perturbation.

adata.obs.head()

	Metadata_plate_map_name	Metadata_broad_sample	Metadata_mg_per_ml	Metadata_mmoles_per_liter	Metadata_solvent	Metadata_Plate	Metadata_Well	Metadata_Site_Count	Metadata_Count_Cells	Metadata_Count_CellsIncludingEdges	...	Metadata_Supplier_Catalog	Metadata_pert_type	Metadata_control_type	Metadata_CellCount	Metadata_SiteCount	Metadata_Control	Metadata_Compound	Metadata_Concentration	Metadata_MOA	Metadata_Perturbation
0	C-7210-01-CMP-014	NaN	NaN	NaN	DMSO	BR00122970	A01	9	1758	1890	...	DMSO	control	negcon	1758.0	9.0	True	DMSO	NaN	NaN	DMSO
1	C-7210-01-CMP-014	NaN	NaN	NaN	DMSO	BR00122970	A02	9	1941	2137	...	DMSO	control	negcon	1941.0	9.0	True	DMSO	NaN	NaN	DMSO
2	C-7210-01-CMP-014	NaN	NaN	NaN	DMSO	BR00122970	A03	9	1840	2007	...	DMSO	control	negcon	1840.0	9.0	True	DMSO	NaN	NaN	DMSO
3	C-7210-01-CMP-014	NaN	NaN	NaN	DMSO	BR00122970	A04	9	1869	2027	...	DMSO	control	negcon	1869.0	9.0	True	DMSO	NaN	NaN	DMSO
4	C-7210-01-CMP-014	NaN	NaN	NaN	DMSO	BR00122970	A05	9	2165	2369	...	DMSO	control	negcon	2165.0	9.0	True	DMSO	NaN	NaN	DMSO

5 rows × 26 columns

Plates of one screen can disagree on their columns when a channel failed on one of them, so the eight are read down to the features they share. That is on_column_mismatch="intersect"; the default is to raise instead, so a mismatch is never silent.

adata.obs.groupby("Metadata_Plate", observed=True).size()

Metadata_Plate
BR00122970    384
BR00122971    384
BR00122972    384
BR00122973    384
BR00122974    384
BR00122975    384
BR00122977    384
BR00122978    384
dtype: int64

What a feature name says

CellProfiler names a feature <object>_<feature group>_<feature>[_<channel>][_<parameters>], and read_profiles() pulls that apart into var. Correlation features measure colocalization between a pair of channels, recorded as a pair such as AGP|Brightfield. AreaShape is geometry and carries none.

adata.var.head()

	object	feature_group	feature	channel	scale	angle	gray_levels	radial_bin	params	is_feature
Cells_AreaShape_Area	Cells	AreaShape	Area	NaN	NaN	NaN	NaN	NaN	NaN	True
Cells_AreaShape_BoundingBoxArea	Cells	AreaShape	BoundingBoxArea	NaN	NaN	NaN	NaN	NaN	NaN	True
Cells_AreaShape_Compactness	Cells	AreaShape	Compactness	NaN	NaN	NaN	NaN	NaN	NaN	True
Cells_AreaShape_Eccentricity	Cells	AreaShape	Eccentricity	NaN	NaN	NaN	NaN	NaN	NaN	True
Cells_AreaShape_EquivalentDiameter	Cells	AreaShape	EquivalentDiameter	NaN	NaN	NaN	NaN	NaN	NaN	True

adata.var[adata.var["feature_group"] == "Correlation"].head(3)

	object	feature_group	feature	channel	scale	angle	gray_levels	radial_bin	params	is_feature
Cells_Correlation_Correlation_AGP_BFHigh	Cells	Correlation	Correlation	AGP|BFHigh	NaN	NaN	NaN	NaN	NaN	True
Cells_Correlation_Correlation_AGP_BFLow	Cells	Correlation	Correlation	AGP|BFLow	NaN	NaN	NaN	NaN	NaN	True
Cells_Correlation_Correlation_AGP_Brightfield	Cells	Correlation	Correlation	AGP|Brightfield	NaN	NaN	NaN	NaN	NaN	True

adata.var.groupby(["object", "feature_group"], observed=True).size().sort_values(ascending=False).head(10)

object     feature_group
Nuclei     Texture               1248
Cytoplasm  Texture               1248
Cells      Texture               1248
Nuclei     Correlation            224
Cytoplasm  Correlation            224
Cells      Correlation            224
           RadialDistribution     207
Cytoplasm  RadialDistribution     207
Cells      Granularity            128
Nuclei     Granularity            128
dtype: int64

A slice of the measurements is then a query on var instead of a regex on the names:

dna_intensity = adata[:, (adata.var["channel"] == "DNA") & (adata.var["feature_group"] == "Intensity")]
dna_intensity.shape

(3072, 45)

Reading your own files

The remaining arguments cover what has differed between datasets:

adata = mt.io.read_profiles(
    sorted(Path("profiles").glob("*/*.parquet")),
    sentinels=-999,                          # values standing for missing, replaced with NaN
    index_columns=("Metadata_Plate", "Metadata_Well"),  # joined with ":" into the observation index
    metadata_columns=("ImageNumber",),       # numeric columns that are not features
    path_columns={"Metadata_Batch": 2},      # metadata read off the file path
    on_column_mismatch="intersect",
)

path_columns maps a column name to how many directories up from the file to read the name of. That is how a batch or a plate that exists only in the directory layout gets into obs.

Pointed at a directory instead, the same call reads a CellProfiler ExportToSpreadsheet run, one row per cell with every object joined on, or the parquet parts CytoTable writes.

A first look

These are raw measurements, most of them redundant. Default feature selection keeps a few hundred, and scaling those is enough for a first look with scanpy:

import scanpy as sc

mt.pp.feature_select(adata, na_cutoff=0.0)
adata = mt.pp.subset_features(adata)
sc.pp.scale(adata)

sc.pp.pca(adata)
sc.pp.neighbors(adata)
sc.tl.umap(adata)

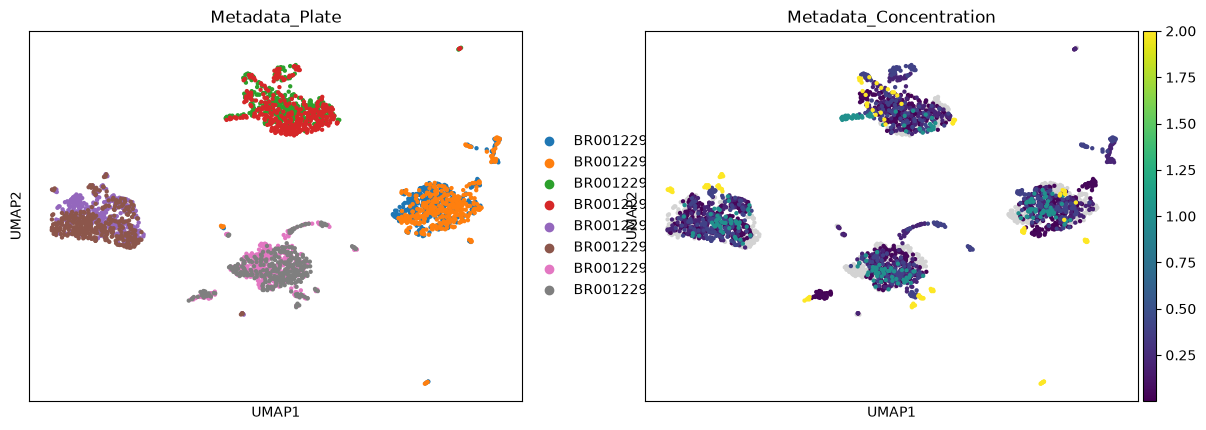

sc.pl.umap(adata, color=["Metadata_Plate", "Metadata_Concentration"], ncols=2)

The eight plates fall into four clusters of two, and the DMSO wells split among them. All eight share one plate map, so the clusters come from how the plates were run rather than from what they received, which a real analysis has to account for before interpreting the rest of the embedding.

JUMP

A JUMP plate parquet has three metadata columns, source, plate and well, and nothing about what each well received. read_jump() reads the plates and joins the perturbation from the JUMP metadata repository, which is what jump_target2() does for you:

wells = mt.io.read_jump(sorted(Path("jump").glob("*.parquet")), on_column_mismatch="intersect")

That annotation names compounds. For the CRISPR plates, mt.pp.annotate_jump(wells, kind="crispr") joins the gene each well targets instead, as jump_crispr() does.

JUMP calls a participating laboratory a source, Metadata_Source. In a CellProfiler export, Metadata_Site is a field of view inside a well, a different thing.

Working from disk

mt.io.read(path, backed="r") leaves X in the file. obs and var are loaded into memory, so metadata, QC flags and feature selection work as before, and grouped operations read one group at a time.

Backed mode is slower than working in memory, so use it only on data that does not fit.

import tempfile
from pathlib import Path

import numpy as np

path = Path(tempfile.mkdtemp()) / "pki.h5ad"
mt.io.write(mt.ds.pki(), path)

backed = mt.io.read(path, backed="r")
in_memory = mt.io.read(path)

{
    "backed": (backed.isbacked, type(backed.X).__name__),
    "in memory": (in_memory.isbacked, type(in_memory.X).__name__),
    "obs is in memory either way": type(backed.obs).__name__,
}

{'backed': (True, 'Dataset'),
 'in memory': (False, 'ndarray'),
 'obs is in memory either way': 'DataFrame'}

from_disk = mt.pp.normalize(backed, by="Metadata_Plate", reference="negcon", copy=True)
resident = mt.pp.normalize(in_memory, by="Metadata_Plate", reference="negcon", copy=True)

{
    "identical": bool(np.allclose(np.asarray(from_disk.X), np.asarray(resident.X), rtol=1e-6)),
    "largest difference": float(np.abs(np.asarray(from_disk.X) - np.asarray(resident.X)).max()),
}

{'identical': True, 'largest difference': 0.0}

The results are identical. The backed path reduces group by group while the in-memory path makes one kernel call, and the test suite asserts they agree to 1e-10.

Functions that rewrite X need copy=True here. The file is open read-only, so they raise a clear error instead of failing inside h5py:

try:
    mt.pp.normalize(backed, by="Metadata_Plate")
except ValueError as error:
    print(error)

normalize rewrites X, which a backed object holds read-only on disk. Pass copy=True to get the result in memory, or call adata.to_memory() first.
